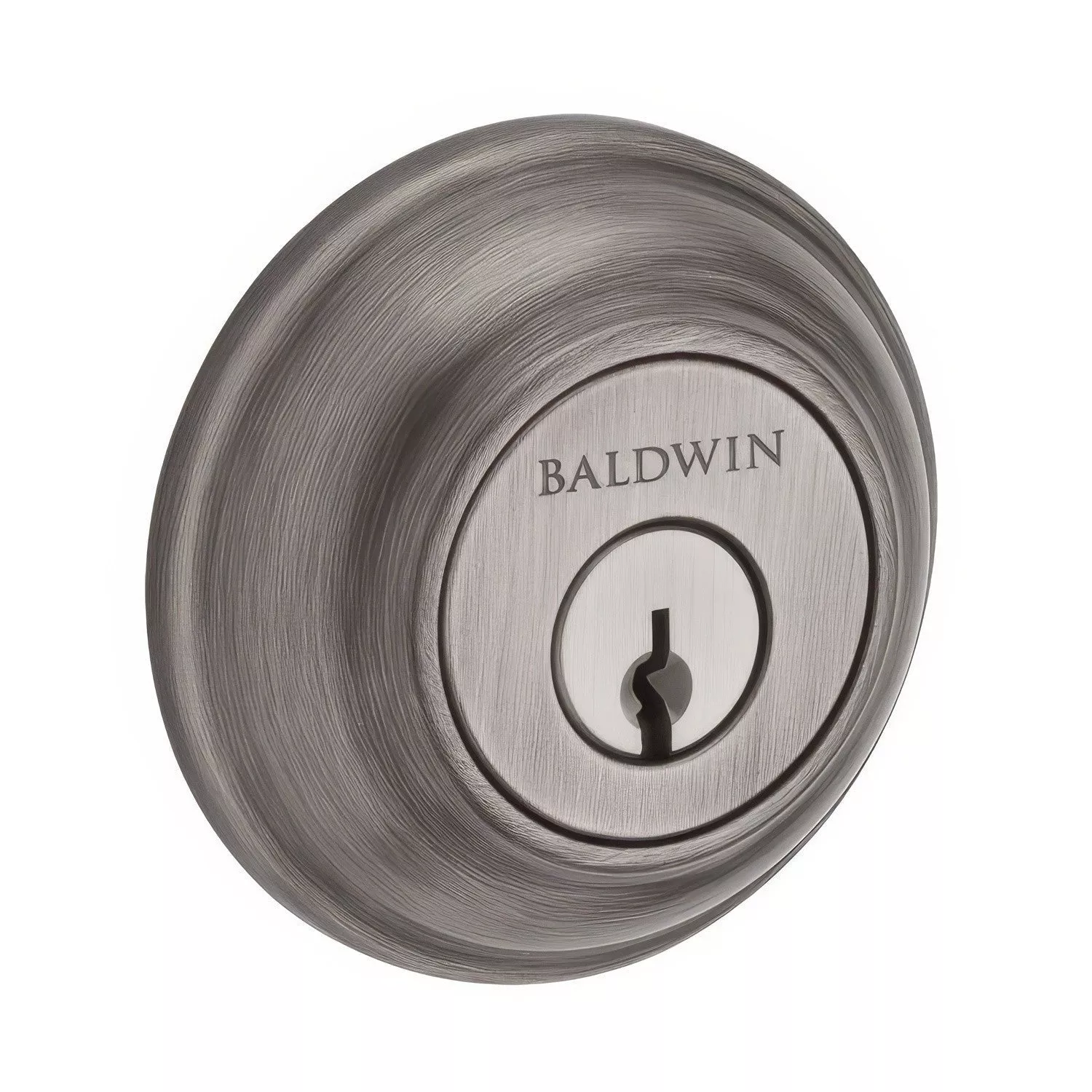

The Baldwin SC.TRD is a single-cylinder deadbolt designed for exterior doors requiring keyed access outside and interior thumbturn operation. The model and product title identify the exact configuration being offered.
Made from brass, this hardware is part of the Baldwin Reserve collection. Confirm handing, backset, door preparation, dimensions, and included components before ordering.
- Model: SC.TRD
- Function: Single Cylinder Deadbolt
- Material: Brass
- Collection: Reserve
- Series: Traditional Round
- Backset: Adjustable 2-3/8 in to 2-3/4 in
- Door Thickness: 1-3/4 in to 2-1/2 in
- Cross Bore: 2-1/8 in
- Edge Bore: 1 in
- Latch Faceplate: Round Corner / Square Corner / Drive-In
Additional Baldwin Information
Baldwin Hardware SC.TRD Specification
Baldwin Hardware SC.TRD Installation Instruction
Baldwin Hardware SC.TRD Drilling Instructions
View Baldwin Manufacturer Warranty
Shop All Baldwin Products
Do not use prints made from this website to mark distances.
Due to individual printers, dimensions on installation instructions may not print at an accurate scale.
