Double Sided Contacts

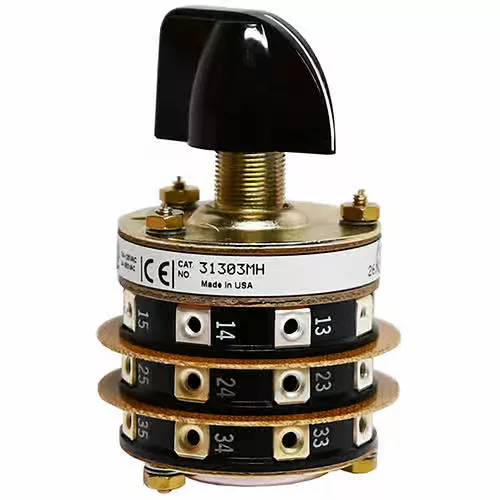

Electroswitch Series 31 control switches are used in applications requiring multiple circuits. The 31303MH switch has double-sided, double-wiping, knife type rotary contacts with silver surfaces that provide a long and reliable life. Terminal screws make it easy to insert and secure your connections!
- Positive positioning mechanism
- Pre-wired jumpers
- Terminal switch connectors
- Standard four hole mount
- 8 positions with adjustable stops
- Silver plated phosphor-bronze, double grip rotor contacts
- Silver plated copper stationary contacts
- Double sided, double wiping, knife type contacts
- Rotary design
- Contacts enclosed in molded-phenolic discs
- Overload current (50 operations): 60A/125 VAC resistive
- Voltage breakdown: 2200V rms minimum
- Insulation resistance: 100 Megohms minimum
- Contacts resistance: 0.01 ohms maximum
- Electroswitch item 31303MH
