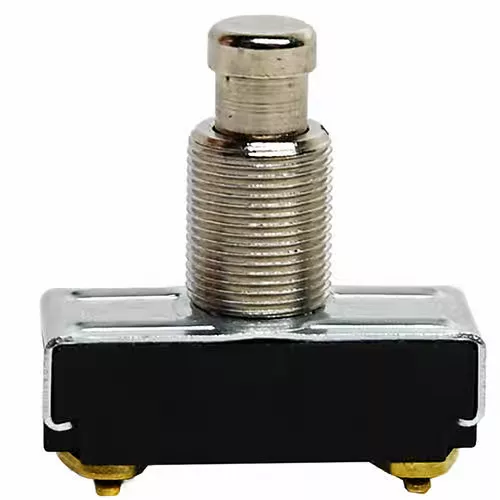

Shallow Back Panel Push Button
A push button switch for combo vacuums and shallow back panel applcations. It is compatible with electric motors, appliances, power tools, light fixtures, and instruments with shallow back panels. Features 2 electrical connections and is rated for 10A at 250V AC and 15A at 125V AC.
Specifications:
- Contact Form: SPST
- Number of Connections: 2
- Switch Function: Off/Momentary On
- Terminals: Screw
- Mounting Hole: 1/2 in dia
- AC Contact Rating: 10A @ 250V AC, 15A @ 125V AC
- Stem Length: 0.562 in
- Stem Dia. and Thread Size: 0.345 x 15/32-32UNS-2A
- Operating Temp. Range: 32 Degrees to 185 Degrees F
- Recommended Use: Shallow Back Panel Applications
- Compatible Vacuums: Combo Vacs
