Product Description

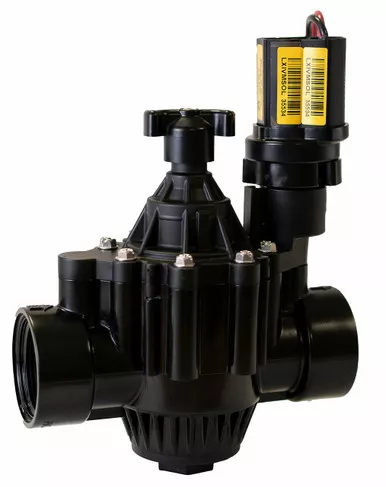

RainBird IVM150PGA 11/2″ PGA-IVM Series Decoder Ready Valve
Best in Class Valves with Preinstalled IVM-SOLRain Bird PGA Series valves are now available with the Integrated Valve Module “smart solenoid” (IVM-SOL) preinstalled. The new IVM Smart Valves, when paired with the ESP-LXIVM Two-Wire controller, eliminate decoders resulting in 50% fewer wire splices, which reduces system cost and improves reliability. During operation, the IVM-SOL provides two-way communication between the valve and controller to provide advanced diagnostic capability and faster response time.
Features:
Best-in-Class ValvesWith industry-leading reliability and performance, the Rain Bird PGA Series of commercial valves are now even better with preinstalled IVM-SOLNext Generation Two-Wire SystemThe ESP-LXIVM Two-Wire Controller is the next leap forward—simplifying installation, improving reliability and enabling more troubleshooting features that save timePerformance and ReliabilityWith 50% fewer connections, an IVM Smart Valve is already 200% more reliable out of the box versus using a valve and decoderFeaturesGlobe and angle configuration for flexibility in design and installationPVC and glass reinforced nylon constructionFiltered pilot flow to resist debris and clogging of solenoid portsSlow closing to prevent water hammer and subsequent system damageManual internal bleed operates the valve without allowing water into the valve boxOne-piece solenoid design with captured plunger and spring for easy servicing prevents loss of parts during field serviceNon-rising flow control handle adjusts water flows as neededNormally closed, forward flow designOptions (order separately)Accommodates optional, field installed PRS-D pressure regulating module
SpecsAccommodates optional, field installed PRS-D pressure regulating moduleFlow: 2 –150 gpm (0.45 to 34.05 m3/h; 7.8 to 568 l/m)Flow with PRS-D: 5 –150 gpm (1.14 to 34.05 m3/h; 19.2 to 568 l/m)Water Temperature: up to 110° F (43° C)Ambient Temperature: up to 125° F (52° C)Electrical SpecificationsPower: 26.5 Vrms 50/60 Hz (cycles/sec)Inrush current: <40mA (Peak)Quiescent current: <0.4mA (ave.)Voltage range: 15.6 – 29.2 VrmsCompatible with LXIVM controllersDimensions (H x W x L)IVM100PGA: 7.25” (18.4 cm), 5.5” (14.0 cm), 3.25” (8.3 cm)IVM150PGA: 8” (20.3 cm), 6.75” (17.2 cm), 3.5” (8.9 cm)IVM150PGA: 10” (25.4 cm), 7.75” (19.7 cm), 5” (12.7 cm)Model ComparisonIVM100PGA: 1" Valve with IVM-SOLIVM150PGA: 1.5" Valve with IVM-SOLIVM200PGA: 2" Valve with IVM-SOL
