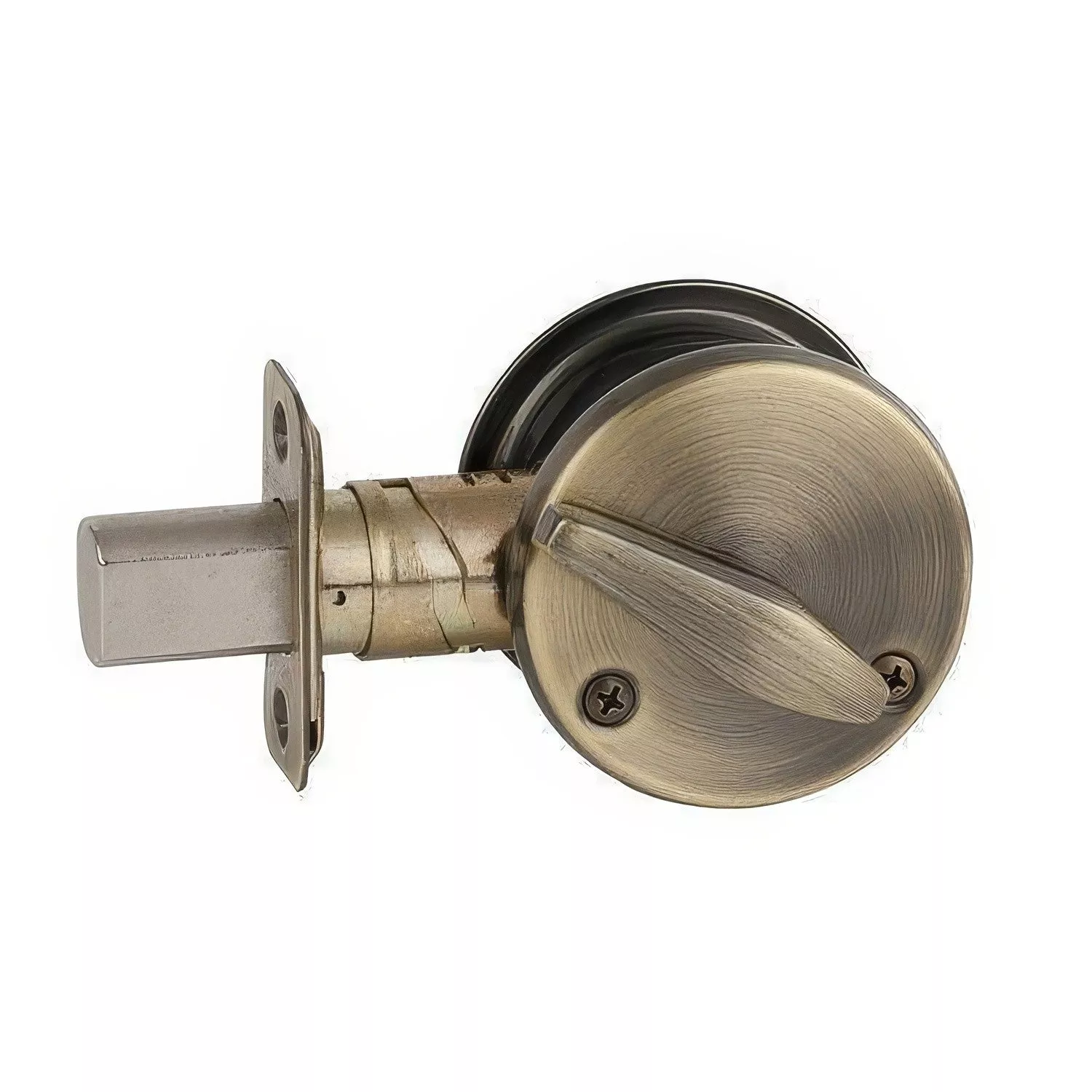

The Schlage Commercial B560P Single Cylinder Deadbolt is a single cylinder deadbolt. It is a keyed commercial auxiliary deadbolt with a single-cylinder configuration.
Verified specifications include Material: Brass/Bronze; Collection: B500 Series; Backset: 2-3/8 to 2-3/4; Door Thickness: 1-3/8 to 2.
Product Details
- Manufacturer Part Number: B560P
- Product Type: Single Cylinder Deadbolt
- Function: Single Cylinder Deadbolt
- Brand: Schlage Commercial
- Material: Brass/Bronze
- Collection: B500 Series
- Style: Commercial
- Backset: 2-3/8 to 2-3/4
- Door Thickness: 1-3/8 to 2
- Cross Bore: 2-1/8
- Edge Bore: 1
- Latch Faceplate: Round Corner / Square Corner / Drive-In
- BHMA Certification: Grade 2
- ANSI Certification: A156-1/2
- ANSI/BHMA: A156.5
- Cylinder: 6 Pin Schlage C123
Before ordering: Confirm model B560P and the required function, dimensions, preparation, cylinder or core format, and keying shown in the product details.
