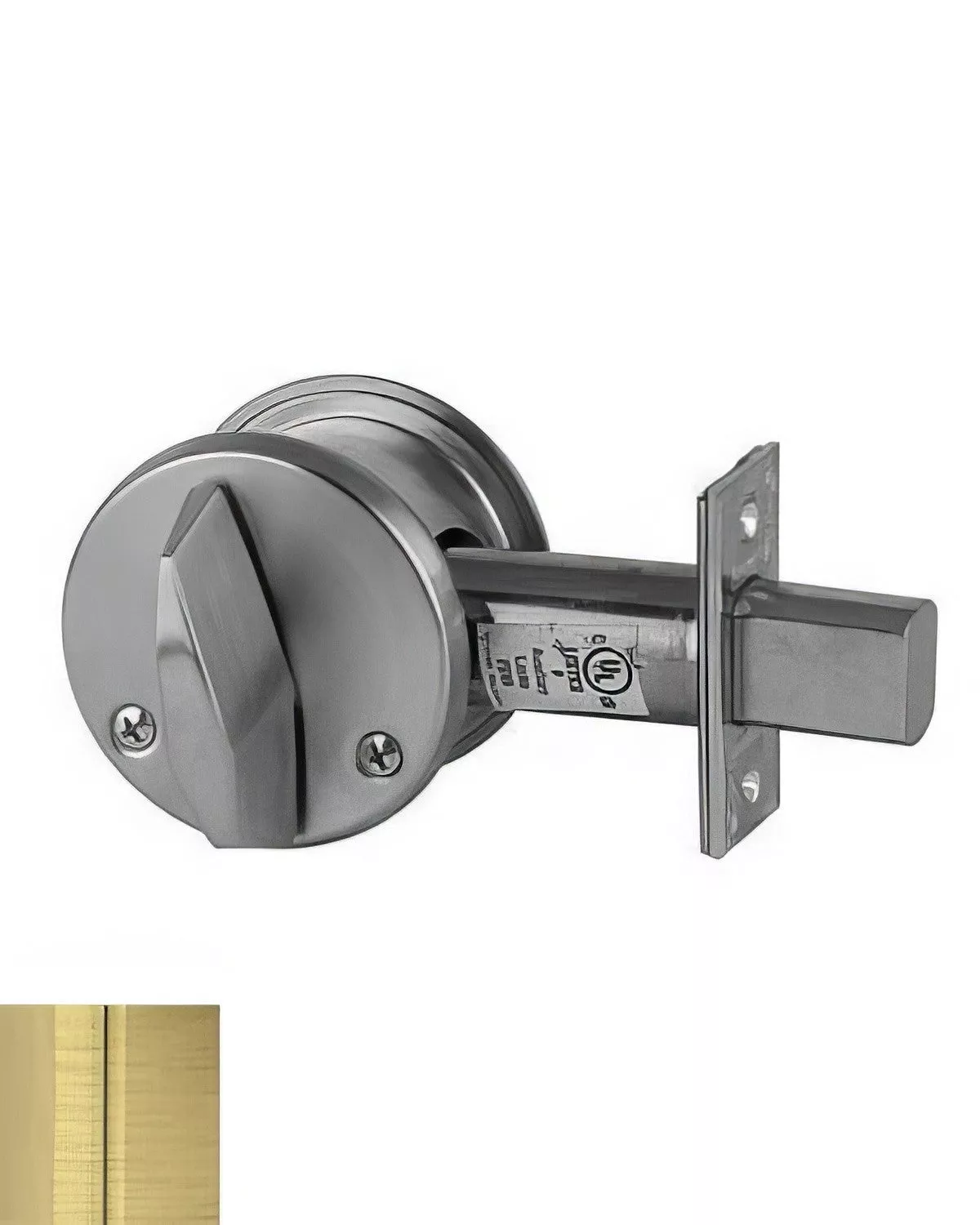

The Schlage Commercial B663P Single Cylinder Classroom Deadbolt is a classroom deadbolt. It is configured for classroom-function deadbolt applications.
Verified specifications include Material: Metal; Collection: B600 Series; Backset: 2-3/8 to 2-3/4; Door Thickness: 1-3/8 to 2-1/2.
Product Details
- Manufacturer Part Number: B663P
- Product Type: Classroom Deadbolt
- Function: Classroom Deadbolt
- Brand: Schlage Commercial
- Material: Metal
- Collection: B600 Series
- Backset: 2-3/8 to 2-3/4
- Door Thickness: 1-3/8 to 2-1/2
- Cross Bore: 2-1/8
- Edge Bore: 1
- Latch Faceplate: Square Corner
- BHMA Certification: Grade 1
- ANSI Certification: A156.5
- ANSI/BHMA: A156.5
- Cylinder: 6 Pin Schlage C123
Before ordering: Confirm model B663P and the required function, dimensions, preparation, cylinder or core format, and keying shown in the product details.
